Direct warehouse connection

Use this guide when DashQ has provisioned direct BigQuery access for your team. This path supports SQL clients, notebooks, internal BI, and locally operated MCP tools. It is separate from application embeds, JSON APIs, and the hosted DashQ Data MCP.

Choose the right path

Need	Recommended integration
Embed a complete DashQ experience	Embedded experiences
Render DashQ data in your product	Data APIs
Connect an approved AI client without local Google credentials	DashQ Data MCP
Run approved models from an external client	Dashnet inference
Run SQL, notebooks, BI, or your own BigQuery MCP process	Direct warehouse connection

What to send DashQ

Pick the access you need and send these details through the approved onboarding channel. You can combine paths, and you can start with analysts while service-account network details are still being prepared.

Access you need	You send DashQ	DashQ sends back
Individual analysts for interactive SQL or BI	Each analyst's work email, with a Google account on it, and the account/property scope	Activation confirmation and the provisioning package
DashQ-provisioned service account for unattended refresh, without your own Google Cloud project	Fixed public egress CIDRs of the connecting server, the person who receives the credential, scope, and environment	Service-account email and key, through the approved channel
Client-owned service account from your own Google Cloud project	Your service-account email, fixed public egress CIDRs, scope, and environment	Confirmation that identity and network access are active

Provisioning package

DashQ provides these values through the approved onboarding channel:

Value	Placeholder used below
Project containing the governed views	YOUR_DASHQ_DATA_PROJECT_ID
Project billed for queries	YOUR_BILLING_PROJECT_ID
Approved dataset and views	YOUR_DATASET_ID, YOUR_VIEW_ID
BigQuery processing location	YOUR_LOCATION
Authentication method	Individual analyst account, client-owned service account, DashQ-provisioned service account, user ADC, impersonation, workload identity, or an approved key file
Service-account identity, when used	YOUR_SERVICE_ACCOUNT_EMAIL
Approved public egress networks	YOUR_ALLOWED_IP_CIDRS

Do not infer these values from source code, another customer, or another environment.

Current upstream references:

• Google Cloud authentication and ADC
• Service-account impersonation
• BigQuery with MCP Toolbox
• DBeaver BigQuery driver
• Power BI Google BigQuery connector

Required access

The authenticated principal needs permission to create BigQuery jobs in the billing project and read only the datasets/views included in the provisioning package. DashQ normally maps this to the minimum equivalent of BigQuery Job User plus Data Viewer at the narrowest applicable scope. Service-account requests must also originate from a public egress network approved for that client. Individual analyst accounts are admitted by identity; see Individual analyst access.

The BigQuery API must be enabled for the billing project. Production and non-production identities, projects, credentials, and query results must remain separate.

Individual analyst access

Use this path for people who query or build reports interactively, for example in Power BI Desktop, DBeaver, or a notebook. You do not need your own Google Cloud project.

1. Each analyst needs a work account managed by Google Workspace. The client administrator must enforce 2-Step Verification before activation. Other account types require a reviewed onboarding path; do not activate them under this procedure.
2. Send DashQ the list of work emails and the account/property scope through the approved onboarding channel.
3. DashQ grants each account read access to the approved views and permission to run queries in YOUR_BILLING_PROJECT_ID, then confirms activation.
4. Each analyst signs in with that Google account, for example with Option A or the Power BI Sign in button, and runs the validation steps below.

Analyst accounts have no network restriction. Administrator-enforced 2-Step Verification is mandatory before activation. Ask DashQ to revoke an account when its owner leaves the team.

Client-owned service-account activation

This is the preferred handoff when the client already operates a dedicated Google service account for SQL, BI, notebooks, or local MCP workloads.

1. The client creates a dedicated service account in a client-controlled Google Cloud project.
2. The client sends only the service-account email and approved public egress CIDRs—for example, dashq-analytics-reader@YOUR_CLIENT_PROJECT_ID.iam.gserviceaccount.com and YOUR_ALLOWED_IP_CIDRS—through the approved DashQ onboarding channel. Do not send a JSON key, private key, access token, or credential file.
3. The client confirms the DashQ account/property scope and the production or non-production environment to activate.
4. DashQ grants that principal read access to the approved governed datasets or views, authorizes the supplied source networks, and confirms when both controls are active.
5. The client enables the BigQuery API and grants the service account permission to create query jobs in YOUR_BILLING_PROJECT_ID.
6. The client authenticates as that identity using workload identity, impersonation, or an approved client-managed key, then runs the validation steps below.

Responsibility	Owner
Create and govern the service account	Client
Provide the service-account email, requested business scope, and public egress CIDRs	Client
Maintain stable egress and notify DashQ before an approved CIDR changes	Client
Activate the approved DashQ dataset/view and source-network access	DashQ
Manage credentials, key rotation, workload identity, and query billing	Client
Change or revoke the DashQ data grant when requested	DashQ

Create the principal and its query-job permission from Google Cloud Shell. If an approved dedicated service account already exists, skip the create command and set SERVICE_ACCOUNT_EMAIL to its email. The service account does not need a project-level data role in the client project:

gcloud services enable iam.googleapis.com \
  --project=YOUR_CLIENT_PROJECT_ID

gcloud services enable bigquery.googleapis.com \
  --project=YOUR_BILLING_PROJECT_ID

gcloud iam service-accounts create dashq-reader \
  --project=YOUR_CLIENT_PROJECT_ID \
  --display-name="DashQ governed warehouse reader"

SERVICE_ACCOUNT_EMAIL="dashq-reader@YOUR_CLIENT_PROJECT_ID.iam.gserviceaccount.com"

gcloud projects add-iam-policy-binding YOUR_BILLING_PROJECT_ID \
  --member="serviceAccount:${SERVICE_ACCOUNT_EMAIL}" \
  --role="roles/bigquery.jobUser"

Send DashQ SERVICE_ACCOUNT_EMAIL, YOUR_ALLOWED_IP_CIDRS, the requested account/property scope, and the target environment through the approved onboarding channel. DashQ applies the read grant and network authorization to its governed data scope; the client does not grant DashQ access to the client project.

Access is not active until DashQ confirms both the identity grant and network authorization. If the client replaces the service account or changes its egress network, activate the new value and validate it before the former value is revoked through the same approved channel.

DashQ-provisioned service-account activation

Use this path when you need unattended access, such as a nightly BI refresh, but do not operate your own Google Cloud project.

1. The client sends the approved public egress CIDRs of the server that will connect, the person who will receive the credential, the account/property scope, and the environment.
2. DashQ creates a dedicated service account, grants it read access to the approved views and permission to run queries in YOUR_BILLING_PROJECT_ID, and authorizes the supplied networks.
3. DashQ delivers the service-account email and its key file to the named recipient through the approved onboarding channel, never in an email body, chat message, or ticket.
4. The client stores the key in its protected credential store, connects only from an approved network, and runs the validation steps below.

Responsibility	Owner
Provide public egress CIDRs, the key recipient, scope, and environment	Client
Create the service account, grant views and query jobs, and authorize networks	DashQ
Protect the key and report a suspected exposure or a planned CIDR change	Client
Rotate or revoke the key on request	DashQ

Queries from a DashQ-provisioned service account run in a DashQ billing project. Keep refreshes bounded to the views, columns, and date range you use.

Network authorization

Service-account access has two independent controls:

1. the authenticated principal must exactly match the approved identity; and
2. the request's public source IP must be inside that client's approved CIDR set.

BigQuery IAM alone is not sufficient. DashQ creates a client-specific access level and ingress rule that pair the approved identity with the approved source network. A valid credential used from an unapproved network is denied before protected DashQ data can be read.

These network rules apply to service accounts. Individual analyst accounts are admitted by identity and are not limited to an approved network.

Provide the public egress CIDR observed after any VPN, proxy, firewall, or NAT—not a laptop's private address such as 10.x.x.x, 172.16.x.x, or 192.168.x.x. Ask your network administrator for the authoritative egress range.

Client path	Network value to approve
DBeaver, local SQL, or notebook	Stable office, VPN, or proxy public egress
Cloud-hosted workload	Static NAT or egress-gateway public CIDR
Self-operated BigQuery MCP	Public egress of the environment running the MCP process
Hosted BI or SaaS connector	Dedicated stable egress CIDRs, when the provider supports them
Power BI scheduled refresh	Public egress of the server running the on-premises data gateway
DashQ-managed Data MCP	Use the managed connector; the user's workstation IP is not part of the direct warehouse path

Use CIDR notation. A single IPv4 address is written as /32. Do not request broad residential, mobile, or unrelated corporate ranges. A hosted connector without dedicated stable egress may be incompatible with direct warehouse access; confirm the supported path during provisioning.

Treat an IP change as an access change. Send the new public CIDR through the approved onboarding channel, validate from the new path, then ask DashQ to remove the old range. DashQ does not publish perimeter identifiers or another client's network ranges.

Authentication

Choose the method DashQ provisioned. Do not create a service-account key unless that method was explicitly approved.

Option A: user Application Default Credentials

Use this for an individually authorized analyst or developer when user-based access is provisioned.

gcloud auth application-default login
gcloud auth application-default set-quota-project YOUR_BILLING_PROJECT_ID

This creates local Application Default Credentials (ADC) for tools and client libraries. Your regular gcloud auth login session and ADC are distinct.

Option B: service-account impersonation

Use impersonation when the provisioning package names a service account and its owner grants a specific operator permission to impersonate it. This uses short-lived credentials and avoids a persistent private key. For a client-owned principal, a client administrator can grant a named operator the Service Account Token Creator role on that service account:

gcloud iam service-accounts add-iam-policy-binding YOUR_SERVICE_ACCOUNT_EMAIL \
  --member="user:YOUR_OPERATOR_EMAIL" \
  --role="roles/iam.serviceAccountTokenCreator"

Do not grant this role to a domain-wide or public principal.

gcloud auth application-default login \
  --impersonate-service-account=YOUR_SERVICE_ACCOUNT_EMAIL

For a single gcloud or bq command, you can instead add:

--impersonate-service-account=YOUR_SERVICE_ACCOUNT_EMAIL

Option C: approved client-managed service-account key

Use a JSON key only when the provisioning package and the client's security policy explicitly allow it and impersonation or federation is unavailable. For a client-owned service account, the client creates and retains the key; DashQ needs only the service-account email and never needs the private key. For a DashQ-provisioned service account, DashQ issues the key to the named recipient. Save the file in the client's protected credential store, restrict file permissions, and never commit, paste, upload, or include it in an AI prompt.

PowerShell for the current process:

$env:GOOGLE_APPLICATION_CREDENTIALS="C:\secure\dashq\warehouse-reader.json"

Bash for the current process:

export GOOGLE_APPLICATION_CREDENTIALS="/secure/dashq/warehouse-reader.json"

Unset the variable after the session and follow the rotation/revocation instructions in your provisioning package.

Validate the connection

First confirm credentials and query-job access without reading business data:

gcloud auth application-default print-access-token

bq query \
  --project_id=YOUR_BILLING_PROJECT_ID \
  --location=YOUR_LOCATION \
  --use_legacy_sql=false \
  "SELECT 1 AS ok"

SELECT 1 proves that the client can authenticate and create a query job in its billing project. It does not prove that the request's source IP is authorized to reach DashQ's protected project.

Then validate one provisioned view with a bounded query. This is the end-to-end check for identity, source network, dataset access, and business scope:

SELECT
  report_date,
  account_name,
  building_name,
  leads_claimed,
  tours_booked,
  applications_submitted,
  leases_signed
FROM `YOUR_DASHQ_DATA_PROJECT_ID.gold_dashq.rpt_leasing_funnel_daily`
WHERE report_date >= DATE_SUB(CURRENT_DATE(), INTERVAL 30 DAY)
ORDER BY report_date DESC
LIMIT 50;

If your package uses another dataset or view, replace the fully qualified name. Use the Data Dictionary to confirm grain, fields, formulas, join keys, nullability, and lineage before building production queries.

Where to start

Most reporting starts from a few gold_dashq views. Each is filtered to your account automatically.

Question	View	One row per
Daily leads, tours, applications, and leases by building	rpt_leasing_funnel_daily	Account, building, day
Lead-to-lease conversion by inquiry date and source	rpt_lead_to_lease_claim_detail	Claimed lead
Lead source quality	rpt_source_performance	Account, building, day, lead source
Tour volume and attendance	rpt_tour_metrics	Account, building, property, agent, tour date
Application pipeline	rpt_application_detail	Application
Lease outcomes by signed date or prior tour date	rpt_lease_attribution_daily	Account, building, day, attribution mode, agent
Current availability and occupancy	rpt_inventory_snapshot	Account, building and property, current snapshot
Historical occupancy	rpt_occupancy_daily	Account, building, property, day
Building names and hierarchy for filters	dim_building_hierarchy	Account, building, property

rpt_lease_attribution_daily holds each lease once per attribution mode. Filter to a single lease_attribution_mode before summing. Look up every other view in the Data Dictionary before joining or aggregating it.

Python and notebooks

Install the official BigQuery client library in your managed environment:

python -m pip install google-cloud-bigquery

ADC automatically supplies the identity configured above:

from google.cloud import bigquery

client = bigquery.Client(project="YOUR_BILLING_PROJECT_ID", location="YOUR_LOCATION")
query = """
  SELECT report_date, building_name, leads_claimed, leases_signed
  FROM `YOUR_DASHQ_DATA_PROJECT_ID.gold_dashq.rpt_leasing_funnel_daily`
  WHERE report_date BETWEEN @start_date AND @end_date
  ORDER BY report_date DESC
  LIMIT 500
"""
job_config = bigquery.QueryJobConfig(
    query_parameters=[
        bigquery.ScalarQueryParameter("start_date", "DATE", "2026-01-01"),
        bigquery.ScalarQueryParameter("end_date", "DATE", "2026-03-31"),
    ],
    maximum_bytes_billed=10_000_000_000,
)
rows = client.query(query, job_config=job_config).result()

Replace the example dates and byte limit with values appropriate to your approved workflow. Keep query parameters separate from SQL text when values come from users.

DBeaver

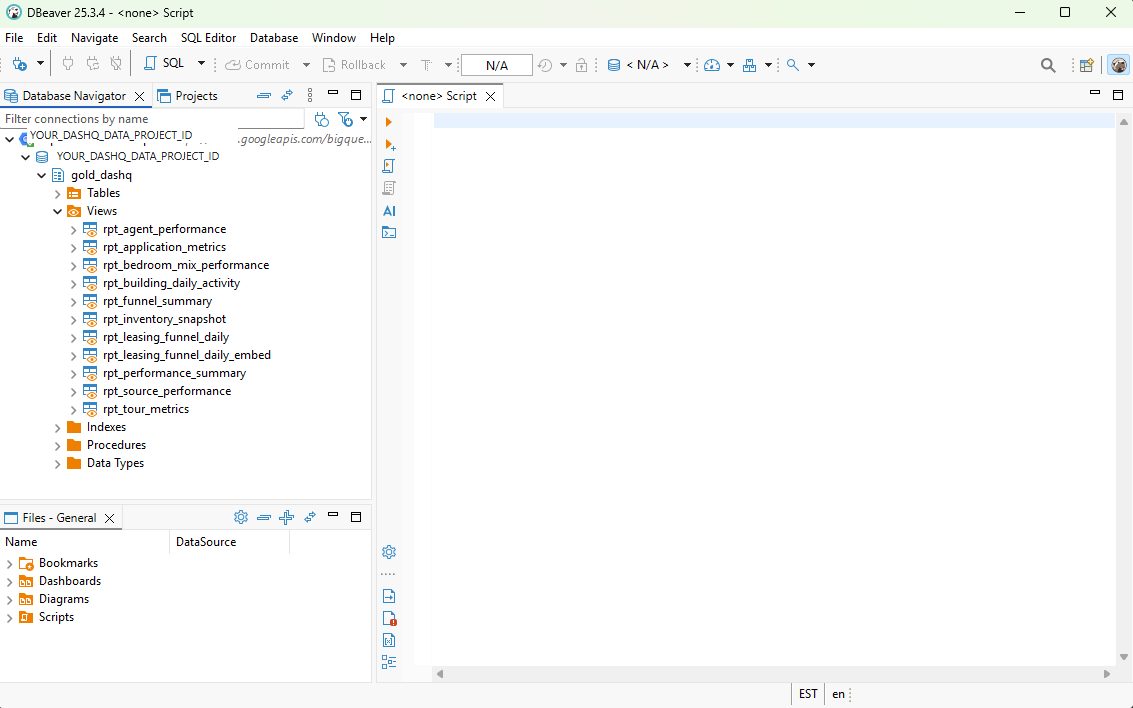

Example DBeaver navigator after warehouse access is activated. The project, dataset, and visible views depend on the client's provisioning package.

1. Select Database > New Database Connection > BigQuery. Use the standard production driver.
2. Enter YOUR_BILLING_PROJECT_ID as the query project. Add the DashQ data project if DBeaver provides an additional-projects field.
3. Connect from the approved office, VPN, proxy, or static cloud egress path listed in YOUR_ALLOWED_IP_CIDRS.
4. Choose the authentication method matching your provisioning package: default credentials, browser/SSO, impersonated ADC, or an approved key file.
5. Select Standard SQL and set YOUR_LOCATION when the connection uses sessions or requires an explicit region.
6. Test the connection, then query one approved view. SELECT 1 AS ok alone does not validate DashQ network or dataset access.

DBeaver metadata discovery can create billable BigQuery requests. Limit visible projects and datasets and disable unnecessary metadata queries when appropriate.

Power BI

Use the Google BigQuery connector in Power BI Desktop. The separate Google BigQuery (Microsoft Entra ID) connector does not apply: DashQ grants access to Google identities.

1. Select Get data > Database > Google BigQuery.
2. Under Advanced options, set Billing Project ID to YOUR_BILLING_PROJECT_ID. Leave Use Storage Api enabled unless your provisioning package says otherwise.
3. Sign in with the identity from your provisioning package:
   • Individual analyst: choose Sign in and use the Google account DashQ activated for you.
   • Service account: choose Service Account Login, enter YOUR_SERVICE_ACCOUNT_EMAIL, and paste the contents of the approved key file. Do not store the key in a shared report, workbook, or repository.
4. In the navigator, expand YOUR_DASHQ_DATA_PROJECT_ID, then gold_dashq, and select only the views you need.
5. Choose Import, then add date and building filters in Power Query before loading so BigQuery returns only the rows you use.

Prefer Import over DirectQuery. DirectQuery sends a new BigQuery query for every visual and filter change, which is slower and adds query cost. Build measures from the Data Dictionary definitions rather than recreating business logic in DAX.

Scheduled refresh

Use a service account, not a person's Google account, for unattended refreshes.

A scheduled refresh in the Power BI service runs from Microsoft's shared cloud addresses, which DashQ cannot approve for a service account. Route it through an on-premises data gateway instead:

1. Install the gateway in standard mode on a server whose public egress is inside YOUR_ALLOWED_IP_CIDRS.
2. Add a Google BigQuery data source to the gateway with the service-account sign-in from step 3 above.
3. Map the published semantic model to that gateway connection and schedule the refresh.

The same rule applies when you extract into your own SQL database first: the server that runs the extract must leave through an approved CIDR.

Looker Studio and BI tools

Use a recurring BI connection only when the reporting owner, viewer credential model, and stable public egress path are defined. A hosted BI service must supply dedicated egress CIDRs that DashQ can approve; shared or changing provider ranges may not be supported.

1. Choose viewer credentials when each viewer has individual BigQuery access, or a managed reusable data source when an analytics owner maintains the connection.
2. Connect the approved Google identity to BigQuery.
3. Select the project, dataset, and view from the private provisioning package.
4. Confirm report_date is a date dimension; account/building names are dimensions; additive volumes use SUM.
5. Add account, building, and date controls. Keep the active scope visible in the report.
6. Start with volume scorecards and a time series before adding calculated rates.

For the leasing funnel view, useful starter measures are leads_claimed, tours_booked, applications_submitted, and leases_signed. Confirm every rate or stage definition in the dictionary rather than rebuilding business logic in the BI layer.

Local BigQuery MCP Toolbox

This section is for teams explicitly approved to operate their own local BigQuery MCP process. For a managed remote connector, use DashQ Data MCP instead.

Google's MCP Toolbox for Databases supports BigQuery through ADC. Install a current release for your operating system; Google requires version v0.7.0 or later.

Windows example:

$toolboxVersion = "YOUR_APPROVED_TOOLBOX_VERSION"
curl.exe -L -o toolbox.exe "https://storage.googleapis.com/mcp-toolbox-for-databases/$toolboxVersion/windows/amd64/toolbox"
.\toolbox.exe --version

Claude Code or Claude Desktop configuration:

{
  "mcpServers": {
    "bigquery": {
      "command": "C:\\path\\to\\toolbox.exe",
      "args": ["--prebuilt", "bigquery", "--stdio"],
      "env": {
        "BIGQUERY_PROJECT": "YOUR_BILLING_PROJECT_ID"
      }
    }
  }
}

VS Code uses the same server definition under a top-level servers object. Restart the client after saving its MCP configuration. The process inherits ADC; do not embed a credential value or key JSON in the MCP file.

The upstream BigQuery toolbox can expose write-capable SQL. Direct DashQ access is provisioned as read-only, but clients must still instruct agents to use bounded SELECT statements, explicit columns, date filters, and limits. Do not rely on the prompt as the authorization boundary.

Query standards

• Prefer governed gold_dashq reporting views over raw or staging datasets.
• Check the view grain and primary/join keys before combining models.
• Select only required fields; avoid SELECT *.
• Apply explicit account, property, and date filters.
• Use query parameters for user-controlled values.
• Use LIMIT, maximum bytes billed, and timeouts for exploration.
• Do not write, export, share, or persist rows outside the approved destination and retention policy.
• Record the view names, filters, and definition assumptions with every material result.

Troubleshooting

Symptom	Check
Client-owned service account has no data	Confirm DashQ activated the exact service-account email for the intended account/property scope and environment.
ADC not found	Run the provisioned ADC flow in the same OS/user context as the client.
Impersonation denied	Confirm your user has permission to impersonate the supplied service account.
403 creating a query job	Confirm job permission in YOUR_BILLING_PROJECT_ID.
403, perimeter, or VPC Service Controls error on a governed view	Confirm the exact identity and that the request is leaving through an approved public CIDR.
Access works on VPN but fails off VPN	The VPN likely provides the approved egress. Use the approved path or submit a controlled CIDR change.
Dataset or view not visible	Confirm the exact data project, dataset, and identity from the provisioning package.
Location mismatch	Set YOUR_LOCATION consistently for the connection and query job.
DBeaver connects but shows no views	Add the DashQ data project and restrict the navigator to the approved dataset.
Power BI signs in but the navigator shows no DashQ views	Confirm you signed in with the activated identity and set Billing Project ID under Advanced options.
Power BI Desktop refreshes, but the Power BI service refresh fails with a perimeter or VPC Service Controls error	The service is refreshing from Microsoft's cloud addresses. Route the refresh through an on-premises data gateway on an approved CIDR.
Power BI fails while reading rows with a read-session permission error	The Use Storage Api option needs BigQuery Read Session User in YOUR_BILLING_PROJECT_ID. Ask DashQ to confirm the grant, or disable the option for that connection.
MCP starts but tools fail	Verify ADC in the MCP process environment and set BIGQUERY_PROJECT to the billing project.
Query is expensive or blocked	Select fewer columns, narrow dates, add filters/limits, and set a bytes-billed cap.

Never send credentials in a support request. Provide the non-sensitive identity name, expected public egress CIDR, project placeholders, timestamp, client/tool version, query job ID, and error code through the approved DashQ support channel.
